A Practical Guide to Specialist Engineering Assessment (SEA)

Think of a Specialist Engineering Assessment (SEA) as a detailed health check-up for public infrastructure, but done before your construction project even breaks ground. It’s a highly technical analysis that predicts how your work might affect critical assets like major water or sewer pipelines, ensuring your project doesn’t cause a very expensive, very disruptive problem.

Unpacking the Specialist Engineering Assessment

At its heart, a specialist engineering assessment is a proactive risk management tool. It’s not just another box to tick for compliance. Imagine you’re excavating a deep basement for a new apartment block in a tight urban spot. That digging will inevitably cause the ground to shift. An SEA is the formal process of calculating exactly how much it will move and what that means for the massive Sydney Water main running just metres away.

This isn’t optional. Asset owners like Sydney Water and local councils mandate these assessments, and they’ve become even more critical under laws like the NSW Design and Building Practitioners (DBP) Act. It’s your way of formally proving that you’ve identified the risks, analysed them properly, and have a solid plan to protect vital public services.

Why Is an SEA So Important?

The main reason we do SEAs is to prevent catastrophic failures of public infrastructure. When a critical water main breaks, it’s not just a simple repair job. We’re talking about massive service disruptions for thousands of people, potential environmental contamination, and serious public safety risks.

An SEA gives asset owners the confidence that a new development has been designed with these risks in mind. It really does three things:

• It Predicts: Using sophisticated engineering models, it forecasts how construction work will affect existing assets.

• It Protects: It details specific measures, like shoring designs or different construction methods, to keep any impacts well within safe limits.

• It Proves: The final output is a certified report that gives everyone verifiable proof of due diligence and compliance.

An SEA bridges the gap between a developer’s construction plans and an asset owner’s need to protect public infrastructure. It translates complex geotechnical and structural interactions into a clear risk assessment and mitigation strategy, ensuring urban development can proceed safely.

In the fast-paced construction world of New South Wales, these assessments are a non-negotiable part of protecting Sydney Water’s massive network. Since enforcement really stepped up after 2018, Sydney Water has reviewed over 500 SEA submissions annually, with an impressive 92% approved after some initial back-and-forth. This process has stopped potential failures in their tracks—incidents that could easily cost $5-10 million a pop. If you want to dive deeper, our team at Integra Consultants have shared more insights on the importance of SEAs.

Ultimately, a well-executed specialist engineering assessment is an investment in certainty. It de-risks your project by flagging potential conflicts early, preventing expensive delays, and safeguarding the essential services we all rely on every day.

When Your Project Needs a Specialist Engineering Assessment

Knowing when a Specialist Engineering Assessment becomes a non-negotiable part of your project is crucial for realistic planning and budgeting. You can’t just hope for the best; the triggers are specific, often contractual or enshrined in legislation. While working near Sydney Water assets is the most common reason, it’s just one piece of a much larger puzzle.

These requirements aren’t just bureaucratic red tape. They are essential safety nets designed to protect critical public services and make sure new developments don’t accidentally damage or compromise the infrastructure we all rely on. Getting this wrong can lead to costly project delays, stop-work orders, and some seriously hefty fines.

Sydney Water and the Zone of Influence

The most frequent trigger for a Specialist Engineering Assessment in NSW is any construction that encroaches on the Zone of Influence (ZoI) of a Sydney Water asset. The easiest way to think of the ZoI is as a protective bubble around a pipe, tunnel, or maintenance hole. If your work is going to puncture that bubble, an SEA is automatically on the table.

But what actually defines this zone? It’s not a simple, fixed distance. The ZoI is a calculated area based on real-world factors like:

• Excavation Depth: The deeper you dig, the wider the zone of influence stretches.

• Ground Conditions: Shifty, sandy soils will create a much larger ZoI than solid, stable rock.

• Asset Type: A massive, critical water main will have a far bigger protective bubble than a small local sewer pipe.

If your planned excavation, tunnelling, dewatering, or even just heavy vibratory compaction falls inside this calculated zone, you’re on the hook to get an SEA done.

Identifying Critical Assets

Sydney Water logically classifies its infrastructure to focus protection where it’s needed most. An SEA is almost always mandatory when your work is near what they call a Critical Asset. These are the major arteries of the water and wastewater network, where a failure would cause widespread and severe disruption.

A pipe might be labelled “critical” because of its:

• Size: Think large-diameter pressure mains or major gravity sewers.

• Material: Older, more fragile pipes made of cast iron or vitrified clay.

• Function: Key trunk mains that serve entire suburbs or regions.

• Location: Assets running through environmentally sensitive areas or high-consequence zones.

The sheer volume of construction in NSW puts this process into perspective. With over 45,000 development applications lodged annually via the NSW Planning Portal, a significant number—around 12%—end up triggering the need for an SEA. In 2023 alone, fines for non-compliance hit $1.1 million AUD, showing just how seriously this is enforced. You can find out more about what Sydney Water expects in their official documentation.

Triggers Beyond Sydney Water

While Sydney Water is a huge part of the picture, they aren’t the only authority that can mandate an SEA. You’ll often find two other triggers pop up during a project’s lifecycle.

To help you quickly identify what might apply to your project, we’ve summarised the most common triggers below.

Common Triggers for a Specialist Engineering Assessment

Triggering Activity or Condition	Description	Primary Authority (e.g., Sydney Water, Council, DBP Act)
Working in the Zone of Influence	Any excavation, dewatering, or vibration within a calculated distance of an asset that could cause ground movement and impact it.	Sydney Water
Development Consent Conditions	A local council specifies an SEA as a condition of approval, often to protect their own assets (like stormwater drains) or to enforce Sydney Water’s rules.	Local Council
Proximity to Critical Assets	Construction near high-consequence infrastructure, such as major water mains, trunk sewers, or assets in sensitive locations.	Sydney Water
Designer’s Duty of Care	A registered designer identifies a risk to an adjoining asset and commissions an SEA to meet their obligations under the DBP Act.	DBP Act

This table shows that the requirement can come from multiple directions, so it’s vital to check your DA conditions and design obligations carefully.

Council Development Application Conditions

Local councils will frequently list the need for an SEA as a formal condition of development consent (DA). This typically happens when a council’s own stormwater assets are at risk, or sometimes they are simply enforcing another authority’s requirements (like Sydney Water’s) as part of their own due diligence. You’ll find it listed as a specific “Condition of Consent” that must be satisfied before a construction certificate can be issued.

The Design and Building Practitioners Act

The Design and Building Practitioners (DBP) Act 2020 has introduced another critical layer of professional accountability. Under this Act, registered design practitioners must formally declare that their designs comply with the Building Code of Australia and all other relevant standards.

If a design involves excavation that could realistically affect a neighbouring property or asset, the designer has a legislated duty of care to ensure its stability isn’t compromised. This often makes an SEA necessary to formally assess, manage, and sign off on that risk. You can learn more about these responsibilities in our guide on design certifications as per the DBP Act 2020.

In short, an SEA is triggered by proximity and risk. Whether it’s Sydney Water’s Zone of Influence, a council DA condition, or a designer’s duty of care under the DBP Act, the goal is always the same: to formally prove your project won’t harm the essential infrastructure we all rely on.

Inside the Technical Scope of an SEA Report

So, we’ve covered the why. Now let’s get into the what. A Specialist Engineering Assessment isn’t a single, isolated task; it’s a multi-disciplinary deep dive that forms the engineering backbone of the whole process. Think of it as a detailed diagnostic workup for a construction project, zeroing in on how it will interact with the critical, and often invisible, infrastructure buried underground.

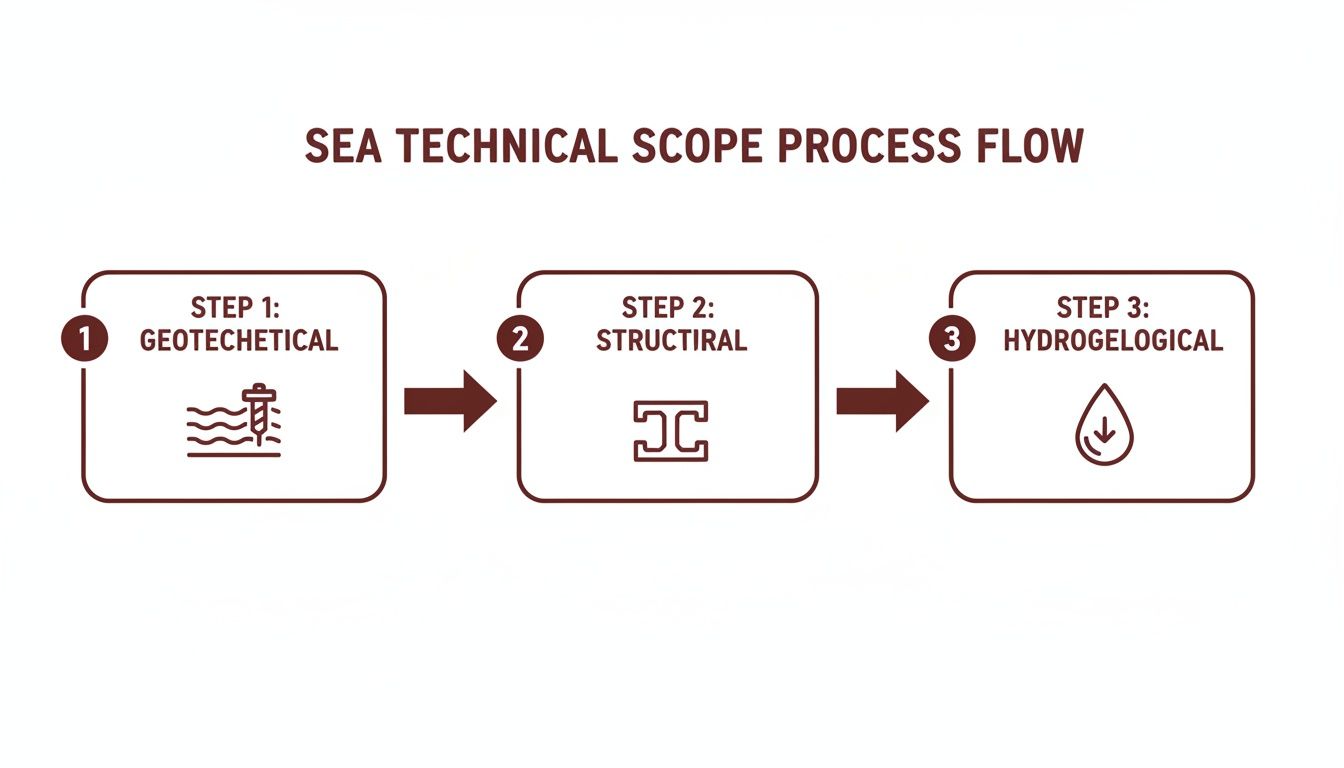

At its core, an SEA pulls together three distinct but tightly connected fields of engineering. Each one provides a critical piece of the puzzle. When combined, they build a complete picture of the potential risks and, more importantly, how to manage them. Skimp on any one of these areas, and you’re left with an incomplete assessment that’s likely to be rejected.

Geotechnical Investigation: The Foundation of the Analysis

Everything begins with the ground itself. You simply can’t predict how a structure will behave until you understand the soil, rock, and earth it’s sitting in. That’s the job of the geotechnical investigation, and it’s the foundational step that informs every single calculation and model that follows.

Trying to design without good geotechnical data is like trying to predict how a boat will handle without knowing if you’re in a calm lake or a stormy sea. The investigation typically involves drilling boreholes, running soil tests in the lab, and mapping out the different ground layers beneath the site.

The whole point is to answer a few critical questions:

• What does the soil and rock profile look like?

• How strong and stiff are the different layers of ground?

• Are there any hidden surprises, like soft clay or loose sand, that could cause major headaches later on?

This data becomes the basis for the ground model—a digital twin of the site’s subsurface conditions that we use for the actual engineering analysis.

Structural Analysis: Assessing the Asset’s Resilience

Once we have a solid understanding of the ground, our focus shifts to the asset itself—the pipeline, tunnel, or culvert we need to protect. This is where structural analysis comes in. It’s all about evaluating the asset’s existing condition and figuring out how much it can take before the changes from your construction cause damage.

Engineers analyse the asset’s material (is it old cast iron, brittle vitrified clay, or reinforced concrete?), its age, its current state of repair, and its original design. This gives them a clear picture of how much stress, bending, or ground movement it can safely tolerate before there’s a risk of cracking, joint displacement, or catastrophic failure. This is an absolutely vital part of any specialist engineering assessment.

A key part of the structural analysis is understanding the interaction between the ground and the asset. It’s not just about the structure in isolation; it’s about how it will respond when the ground around it inevitably moves during construction.

Hydrogeological Assessment: Managing Groundwater Impacts

The final piece of the technical puzzle is the one that’s most often overlooked: water. A hydrogeological assessment looks at the presence and movement of groundwater on the site. This becomes especially critical for projects that involve deep basements or any kind of dewatering.

Pumping groundwater out of an excavation can cause the surrounding ground to settle or consolidate—much like squeezing water from a sponge causes it to shrink. This settlement can put immense stress on nearby assets. The assessment identifies the groundwater level and predicts how it will change, allowing engineers to calculate the potential settlement and design measures to control it.

The Power of Modelling: From X-Ray to MRI

To bring all this information together, engineers turn to powerful computer modelling. The complexity of the model we choose depends entirely on the risk profile of the project.

You can think of it like medical imaging. For a simple, low-risk project, a 2D model is often enough. It’s like an X-ray—it provides a clear, cross-sectional view that’s perfect for assessing straightforward scenarios where the ground conditions are pretty uniform. It’s efficient and does the job well for the right application.

But for a high-risk project—say, a deep, complex excavation right next to a critical water tunnel—a 3D model becomes absolutely essential. This is the engineering equivalent of an MRI scan. It gives us a detailed, multi-dimensional picture of the entire site, capturing complex shapes and variations in the ground with far greater accuracy. To get a better sense of this, you can explore detailed articles about ground-structure interaction analyses and see how these sophisticated models work in practice. This level of detail isn’t optional when the consequences of getting it wrong are severe, ensuring the specialist engineering assessment is as robust as it needs to be.

Navigating the SEA Process from Start to Finish

Kicking off a Specialist Engineering Assessment can feel like you’re staring at a mountain of paperwork and technical jargon. It’s a complex process, no doubt, but if you break it down into a clear workflow, it becomes far more manageable.

Think of it less as a hurdle and more as a detailed project plan. Its whole purpose is to systematically de-risk your construction activities and get that crucial sign-off from authorities like Sydney Water.

The entire process hinges on one thing: proactive communication between the developer, the engineering consultant, and the asset owner. A successful specialist engineering assessment (sea) is built on collaboration from day one, making sure everyone agrees on the objectives and potential risks. In my experience, most delays come from shoddy initial data or simple miscommunication, which makes the first step absolutely critical.

Phase 1: Initial Engagement and Data Gathering

The real work starts long before any complex modelling begins. This first phase is all about laying the groundwork and collecting the essential information that will shape the entire assessment. Get this right, and you set the foundation for a solid, accurate analysis.

This stage involves a few key moves:

1. Engage a Qualified Consultant: Your first job is to pick an engineering consulting firm that has proven experience preparing SEAs, especially for the specific asset owner you’re dealing with (like Sydney Water). Make sure they have the right credentials, such as Chartered Professional Engineer (CPEng) status.

2. Collate Project Documentation: Your consultant will need every relevant project plan you have. This means architectural drawings, structural plans, civil works designs, shoring design and, crucially, the details of your proposed construction method—especially for excavation and shoring.

3. Obtain Asset Information: The consultant, alongside the client, contacts the Sydney Water coordinator or asset owner to gather data about the nearby infrastructure. This data includes “dial-before-you-dig” plans, as-built drawings, material specifications, CCTV report, service protection report and any known information about the asset’s condition.

4. Conduct a Preliminary Risk Screening: With this initial data, a high-level risk assessment is done. This helps scope out the required level of detail for the analysis, flagging whether a simple 2D model will cut it or if a more complex 3D analysis is needed.

Nailing this data-gathering phase is how you avoid those dreaded “requests for more information” down the track, which can cause serious project delays.

Phase 2: Detailed Analysis and Modelling

Once all the data is on the table, the process moves into the core technical analysis. This is where the engineers build a digital model of the site to simulate how your proposed construction will affect the nearby asset. The aim here is to put numbers to the risks and figure out how to manage them.

This phase is the engineering heart of the SEA. It involves creating a detailed ground model from geotechnical reports, defining the asset’s structural properties, and then running simulations of the construction sequence. The engineers will look at predicted ground movements, stresses on the pipe or structure, and any potential settlement from dewatering.

The whole point of this phase is prediction and prevention. The analysis doesn’t just identify a problem; it quantifies how big it could be and then engineers a solution to keep the impact well within safe limits.

Phase 3: Reporting and Submission

With the analysis done, all the findings are pulled together into a formal Specialist Engineering Assessment report. This document is the key deliverable you’ll submit to the relevant authority, like Sydney Water, for their review. A clear, well-structured report is your ticket to a smooth approval process.

The report lays everything out methodically: the initial inputs and assumptions, the detailed analysis results, and—most importantly—the recommended protective measures. This might include specifying a certain type of shoring, setting up a construction exclusion zone, or outlining a detailed monitoring plan for the works.

Phase 4: The Review and Approval Loop

The final leg of the journey is submitting the report through sydney water coordinator and working with the asset owner’s review team. Let’s be realistic: it’s rare for a complex SEA to be approved without a single question. This back-and-forth is a normal and expected part of the process, designed to ensure the assessment is rock-solid.

Your consultant will handle any requests for information (RFIs), provide clarifications, and, if needed, refine the analysis or mitigation strategies. Getting through this phase smoothly comes down to the consultant’s ability to explain technical concepts clearly and prove that all risks have been properly handled. Once the authority is satisfied, you’ll get the formal approval that allows your project to move forward.

Key Components of a Successful SEA Report

A proper specialist engineering assessment (SEA) report isn’t just a jumble of technical data. It’s a carefully structured story that walks an asset owner, like Sydney Water, through the project, the potential risks, and the exact steps you’ll take to protect their infrastructure.

Think about it from their perspective. They review hundreds of these reports, so they expect a clear, logical format. Getting this structure right from the start is your best bet for a smooth review process and avoiding those dreaded “request for information” emails that bring projects to a grinding halt.

Ultimately, the report’s job is to provide undeniable proof that you’ve done your homework—that every potential impact has been found, analysed, and properly managed.

The Anatomy of an Authority-Ready Report

A strong SEA report follows a predictable path. Each section builds on the last, answering the critical questions an asset owner will ask. While the odd detail might vary, any report worth its salt will contain these core elements.

• Executive Summary: This is your one-shot to make a good first impression. It’s a high-level, one or two-page rundown of the entire assessment: what you’re building, what the analysis found, and what protective measures you recommend. A busy reviewer will often read this first to get a quick feel for the project’s risk profile.

• Introduction and Project Overview: Here’s where you set the scene. This section clearly describes the proposed development, identifies the nearby assets at risk (like a critical water main), and states the purpose of the specialist engineering assessment.

• Geotechnical and Asset Data: This is the foundation of your entire analysis. The report presents all the raw data used, including findings from the site’s geotechnical investigation (think borehole logs and lab test results) and all known details about the asset itself—its material, age, condition, and size.

A strong SEA report is built on a foundation of solid data. Incomplete or assumed geotechnical information is a common reason for reports to be rejected, as it undermines the credibility of the entire analysis.

Presenting the Core Analysis and Solutions

Once the groundwork is laid, the report gets to the technical heart of the matter. This is where your engineer shows their work, detailing not just the potential impacts but the specific, practical solutions designed to manage them.

The report needs to clearly spell out:

• Analysis Methodology: This part explains how the analysis was done. It should detail the engineering software used, the ground model created, any assumptions made, and whether a 2D or 3D approach was used. This transparency is key—it allows the reviewer to follow and validate the technical work.

• Impact Assessment Results: This is where the numbers come in. The report presents the findings from the modelling, quantifying the predicted impacts like ground movement, stress changes on the asset, and any settlement caused by dewatering. Crucially, these results are compared against the asset owner’s official tolerance limits.

• Protective Measures: This is the “so what?” section—the solution. Based on the impact assessment, it details the specific engineering controls needed to keep the asset safe. This could be anything from shoring designs and vibration limits to a precise construction sequence. For tricky sites, a deep understanding of deep excavation, dewatering, and shoring design is essential for creating measures that are both effective and buildable.

• Monitoring and Contingency Plan: No report is complete without a plan to prove the protective measures are working. This final piece outlines where and how often monitoring will occur, sets clear trigger levels for action, and details a robust contingency plan if those levels are ever breached.

So, what does this look like all put together? A typical report for an authority like Sydney Water follows a very standard structure to ensure every key area is covered.

Standard SEA Report Structure and Content

The table below outlines the essential sections you should expect to see in any comprehensive Specialist Engineering Assessment report submitted for regulatory approval.

Section Number	Section Title	Key Content and Purpose
1.0	Introduction	Sets the scene with project details, scope, and objectives.
2.0	Desktop Study	Summarises available asset information (e.g., from Sydney Water) and geological maps.
3.0	Geotechnical Investigation	Details the findings from boreholes, CPTs, and lab testing.
4.0	Ground Model	Defines the soil and rock layers and their engineering parameters used in the analysis.
5.0	Numerical Analysis	Explains the software used (e.g., PLAXIS), model setup, and analysis methodology.
6.0	Impact Assessment	Presents the results of the analysis, quantifying predicted ground movements and impacts.
7.0	Protective Measures	Details the specific design solutions to mitigate the identified risks.
8.0	Monitoring and Contingency Plan	Outlines the monitoring locations, frequencies, trigger levels, and response actions.
9.0	Conclusion	Provides a final summary of findings and confirms compliance with asset owner requirements.
Appendices	Supporting Documents	Includes borehole logs, survey plans, architectural drawings, and detailed calculations.

By ensuring your consultant’s report includes these sections and presents the information logically, you significantly improve your chances of a quick and positive review from the asset owner.

Common Pitfalls and How to Avoid Them

Navigating a specialist engineering assessment (SEA) is a critical step, but even the most well-organised projects can hit roadblocks. The key to keeping your project on track and on budget is knowing what these common issues are before they happen.

Most challenges actually pop up right at the start of the process, often before any real analysis has even begun. A proactive approach—where you identify and tackle these risks from day one—is the best way to ensure a smooth journey to approval.

Incomplete or Inaccurate Geotechnical Data

The single most frequent pitfall we see is an assessment built on a weak foundation of poor geotechnical data. Relying on old, sparse, or irrelevant borehole information is like building a house on sand. The entire analysis becomes unstable and, frankly, indefensible.

Asset owners like Sydney Water will spot this a mile away. If your ground model doesn’t accurately reflect the real-world site conditions, it’s an almost guaranteed rejection. This forces you back to square one, needing costly and time-consuming new site investigations right in the middle of your project.

Solution: Commission a site-specific geotechnical investigation early in your design phase. Make sure it’s targeted to the zone of influence around the asset, giving you the high-quality data needed for a robust and defensible ground model.

“An SEA is only as credible as the data it’s built on. Assuming ground conditions is the fastest way to have your report sent back with a request for information. Invest in proper investigation upfront—it saves months of delays on the back end.”

Overly Optimistic Modelling Assumptions

Another classic mistake is making unrealistic or non-conservative assumptions in the engineering model. This might mean underestimating construction loads, using overly optimistic soil strength parameters, or failing to model the construction sequence properly.

These assumptions might make the predicted impacts look smaller on paper, but they don’t reflect reality. Reviewing engineers are trained to spot this, and it immediately undermines the credibility of the entire specialist engineering assessment.

To avoid this, your engineering consultant needs to take a reasonably conservative approach. This means:

• Sensitivity Analysis: Running the model with a range of different parameters (like higher and lower soil stiffness) to see how sensitive the results are. It shows you’ve thought through the uncertainties.

• Realistic Construction Staging: Modelling the step-by-step process of excavation and support installation exactly as it will happen on site, not just the finished product.

• Clear Justification: Making sure every key assumption in the model is clearly stated and justified in the report. This demonstrates transparent and sound engineering judgement.

A Vague or Impractical Monitoring Plan

Finally, a common oversight is submitting a monitoring plan that’s too vague to be useful. Just stating “monitor vibrations” won’t cut it. A solid plan has to be specific, detailing the what, where, when, and how.

Solution: Your consultant needs to develop a detailed Monitoring and Action Plan (MAP) that includes:

• Specific locations for all monitoring points (e.g., directly on the asset and at set distances).

• Clear trigger levels (Alert, Action, and Alarm) for things like ground movement or vibration.

• Defined actions that outline exactly what happens if each trigger level is breached.

This approach transforms the monitoring plan from a simple checkbox item into a practical risk management tool that gives the asset owner confidence your project is genuinely under control.

Common Questions About Specialist Engineering Assessments

When you’re told you need a specialist engineering assessment (SEA), it’s natural to have questions. For developers, builders, and project managers, navigating the specifics can feel a little daunting. Here are some of the most common queries we get, with straight-to-the-point answers to help clear things up.

How Long Does a Specialist Engineering Assessment Take?

The timeline for an SEA really hinges on your project’s complexity and how much risk is involved. For a pretty straightforward job, like a low-risk development, you might be looking at around 2 to 4 weeks from start to finish.

But if you’re dealing with a high-risk project near a Critical Asset – think deep excavation and complex 3D modelling – the whole process could easily stretch to 4 to 8 weeks, maybe even longer. That timeframe covers everything from collecting data and running detailed analyses to preparing the report and getting any independent checks done. The best advice? Get your engineering consultant on board early to stay ahead of your project schedule.

What’s the Difference Between a Geotechnical Report and an SEA?

This is a really important distinction, and one that often causes confusion. A standard geotechnical report is all about understanding the ground conditions to design the foundations for your new building. Its main goal is to make sure your structure is stable and properly supported.

A specialist engineering assessment takes that same geotechnical data and looks at it through a completely different lens. It specifically analyses how your construction work will interact with existing nearby infrastructure, like a Sydney Water main. It’s an impact assessment designed to predict ground movement and stress on that asset, and then map out exactly how you’ll protect it.

Think of it this way: a geotechnical report is about the health of your new building. An SEA is about making sure your new building doesn’t hurt its neighbours.

Who Is Qualified to Prepare and Certify an SEA?

An SEA isn’t something just any engineer can sign off on. It must be prepared and certified by a qualified professional engineer with deep experience, usually in geotechnical or civil/structural engineering. Credentials here are absolutely non-negotiable.

For any project that could impact Sydney Water’s Critical Assets, the engineer must be a Chartered Professional Engineer (CPEng). On top of that, the NSW Design and Building Practitioners (DBP) Act has its own specific registration rules for engineers. Always double-check the credentials and relevant experience of any consultant you hire to make sure you’re fully compliant.

Can We Do an SEA After We’ve Started Construction?

In a word: no. An SEA is fundamentally a proactive risk assessment. It has to be completed and formally approved by the asset owner before you start any work that could affect their infrastructure.

Trying to get approval after the fact is a major compliance breach. It can lead to immediate stop-work orders, hefty fines, and serious legal headaches. The whole point of a specialist engineering assessment is to prevent damage before it happens, not to analyse it afterwards. It’s an essential green light for building safely and legally near critical assets.
